TIRE CHANGER 916W

Description

Products introduction

· No large plate design, equipped with an optional tire lift truck to achieve fully automatic tire loading. And it reduces the contact between the claws and the wheel hub, which can better protect the wheel hub.

· Through servo motors, a continuously variable speed for twisting is achieved, similar to throttle, with control lable speed, generating greater torque and tire removal force.

· Implemented pneumatic locking function, no manual operation required, one click locking.

Feature

· Piston of big cylinder is high density aluminum casting to prolong its service life.

· The clamping jaw is made of precision steel cast which is firm and durable.

· Stronger and more sturdy casing. It has the function of supporting the pillar to tilt back and adds an auxiliary arm, making the operation simple.

· Enhanced inner box structure can avoid mechanical deformation during working to prolong its sevice life.

· Clamping jaw is equipped with the protective sleeve to provide more comprehensive protection for the tires and rims.

· Iron stamping pedal, durable for life (aptional aluminum pedal).

Technical date
Bead breaking force3000KG
Voltage110V/220V/240V/380V/415V 50HZ/60HZ
Outside clamping12"-30"
Inside clamng12"-30"
Power0.75kW/1.1kW
Working pressure8-10Bar/117-145psi
Wheel width3-15"
Net weight/Gross weight360KG/400KG
CertificationCE Approved
Packing size1200*950*1020mm+1200*430*380mm
Max wheel diameter1150mm

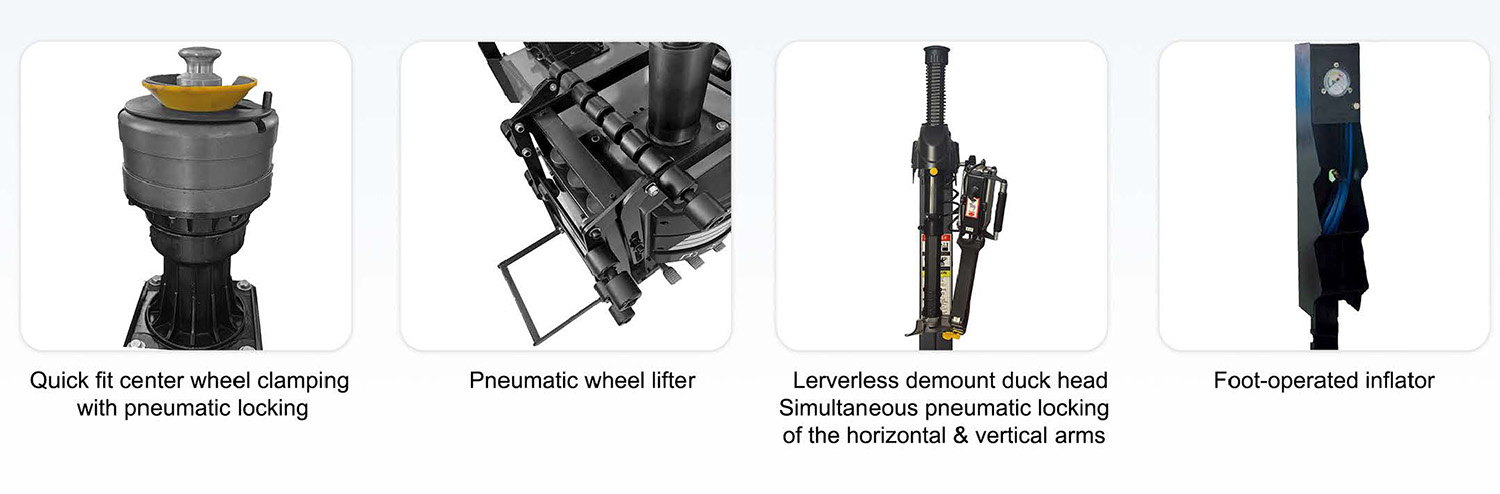

Production details
