TIRE CHANGER 923

Description

Products introduction

The model 923 tire changer can meet most of the daily and production needs, including the basic two-speed rotation. Together with model 925, it is our best-selling product and sold to the world.

Feature

· Economical and practical type.

· Piston of big cylinder is high density aluminum casting to prolong its service life.

· The clamping jaw is made of precision steel cast which is firm and durable.

· Optional motorcycle adaptor.

· Enhanced inner box structure can avoid mechanical deformation during working to prolong its sevice life.

· Clamping jaw is equipped with the protective sleeve to provide more comprehensive protection for the tires and rims.

· Iron stamping pedal, durable for life (aptional aluminum pedal).

Technical date
Bead breaking force2500KG
Voltage110V/220V/240V/380V/415V 50HZ/60HZ
Outside clamping10"-17"
Inside clamng12"-22"
Power0.75kW/1.1kW
Working pressure8-10Bar/117-145psi
Wheel width3-13"
Motorcycle ATV wheel adaptorOptional extra
CertificationCE Approved
Packing size970*780*850mm
Max wheel diameter960mm

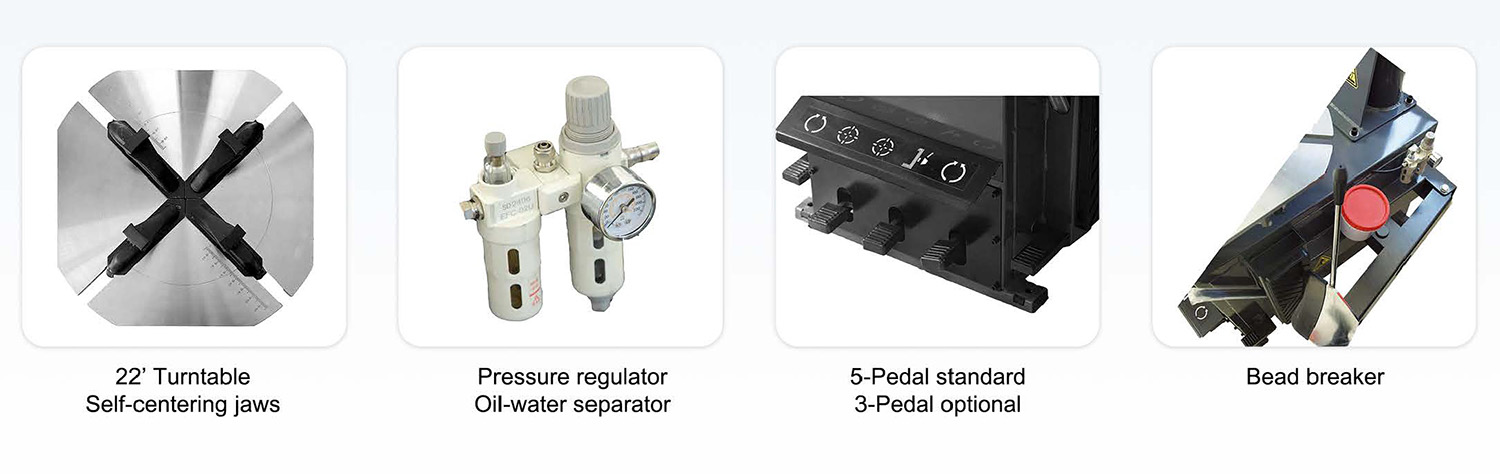

Production details
