WHEEL ALIGNER V3D-YL SINGLE

Description

Products introduction

· Industrial host computer: Solid-state drive Extemal cooling One-click restore Worry-free after-sales service.

· Brand monitors: KONKA+Founder.

· Optional valued-added items: Three-claw fixturedoes not damage the steel rim; Platinum edition'sbody sizemeasure; large-size tumtable; Extension rod increased to 24 inches.

· WIN7/WIN10 optional: optional operating system 34 languages available.

· One-click data upgrade with cloud storage Supports pad/Android phone synchronous display.

Feature

· Leading technology 3D imaging based on body measurements, a broader wiew, more aocuraie dala.

· Measurement and quick: 2 minutes can complete positioning measurement, and reads the iocation data.

· Data accuracy: 3D digital imaging positioning technology, precision up to 0.01 degrees.

· Earings eficient: rapid+aocurate=high banefit, can complete more posilianing work every day.

· The operation is simple: 3D animation guide positioning adjustment.

Technical date
Display Accuracy/Accuracy1'/0.01°/1mm
The total TOE/Accuracy±0.01'
The total TOE/Measuring range±40°
Camber/Accuracy±0.01'
Camber/Measuring range±45°
Caster/Accuracy±0.02'
Caster/Measuring range±45°
S.A.L/Accuracy±0.02'
S.A.L/Measuring range±45°
Thrust/Accuracy±0.01'
Thrust/Measuring range±40°
Set Back/Accuracy±0.01'
Set Back/Measuring range±40°
The max stearing/Accuracy±0.02'
The max stearing/Measuring range±50°
Track width/Accuracy±2mm
Track width/Measuring range1219-2438mm
Wheelbase/Accuracy±2mm
Wheelbase/Measuring range2006-4572mm
Screen size22
Screen load page size1024*768
Gross weight57/66kg
Outside dimension2850*350*330/1130*720*790mm
Tire range availableFull support

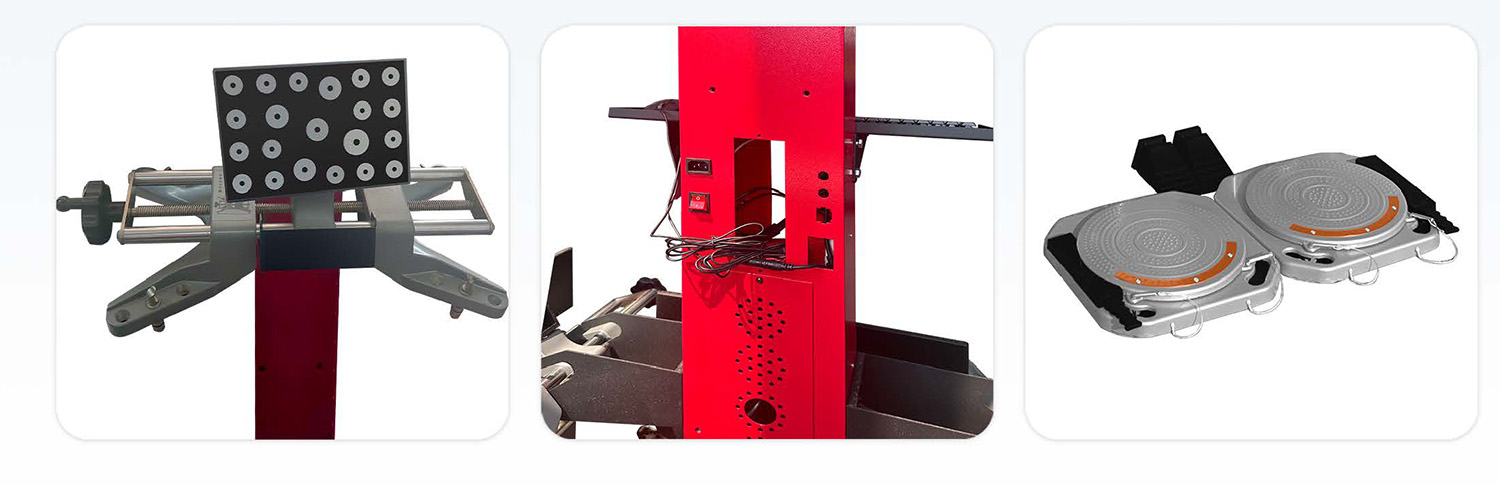

Production details
