WHEEL ALIGNER V3D-CL

Description

Products introduction

· Expand the scope of application.

· Second Screen.

Feature

· Suitable for all kinds of lift two post lift /small scissor lift /mobile scissor lift /four post lift /wheel alignment scissor lift /trench platform.

· Automatic tracking lifting system, controlling the height of the lifting machine, synchronous lifting of the camera beam.

· Perfectly support for 110V/220V broad band voltage, suitable for various customer needs.

· Military level target disk design, suitable for use in narrow spaces less than 2.8 meters.

· Mobile measurement platform ensures accurate and reliable measurement accuracy.

Technical date
Display Accuracy/Accuracy1'/0.01°/1mm
The total TOE/Accuracy±0.01'
The total TOE/Measuring range±40°
Camber/Accuracy±0.01'
Camber/Measuring range±45°
Caster/Accuracy±0.02'
Caster/Measuring range±45°
S.A.L/Accuracy±0.02'
S.A.L/Measuring range±45°
Thrust/Accuracy±0.01'
Thrust/Measuring range±40°
Set Back/Accuracy±0.01'
Set Back/Measuring range±40°
The max stearing/Accuracy±0.02'
The max stearing/Measuring range±50°
Track width/Accuracy±2mm
Track width/Measuring range1219-2438mm
Wheelbase/Accuracy±2mm
Wheelbase/Measuring range2006-4572mm
Screen size19+32
Screen load page size1024*768
Gross weight105/156kg
Outside dimension1130*720*790/2850*560*480mm
Tire range availableFull support

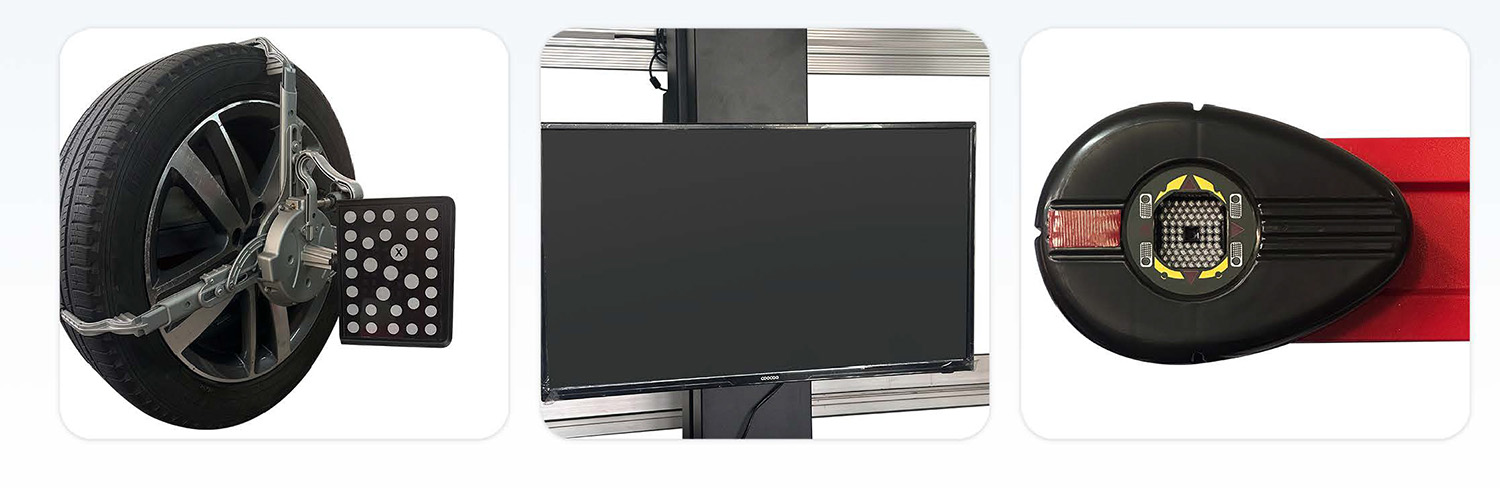

Production details
