Scissor Car Lift

CHANNEL BENDING INVERTED GANTRY LIFT 4/4.5T

Description

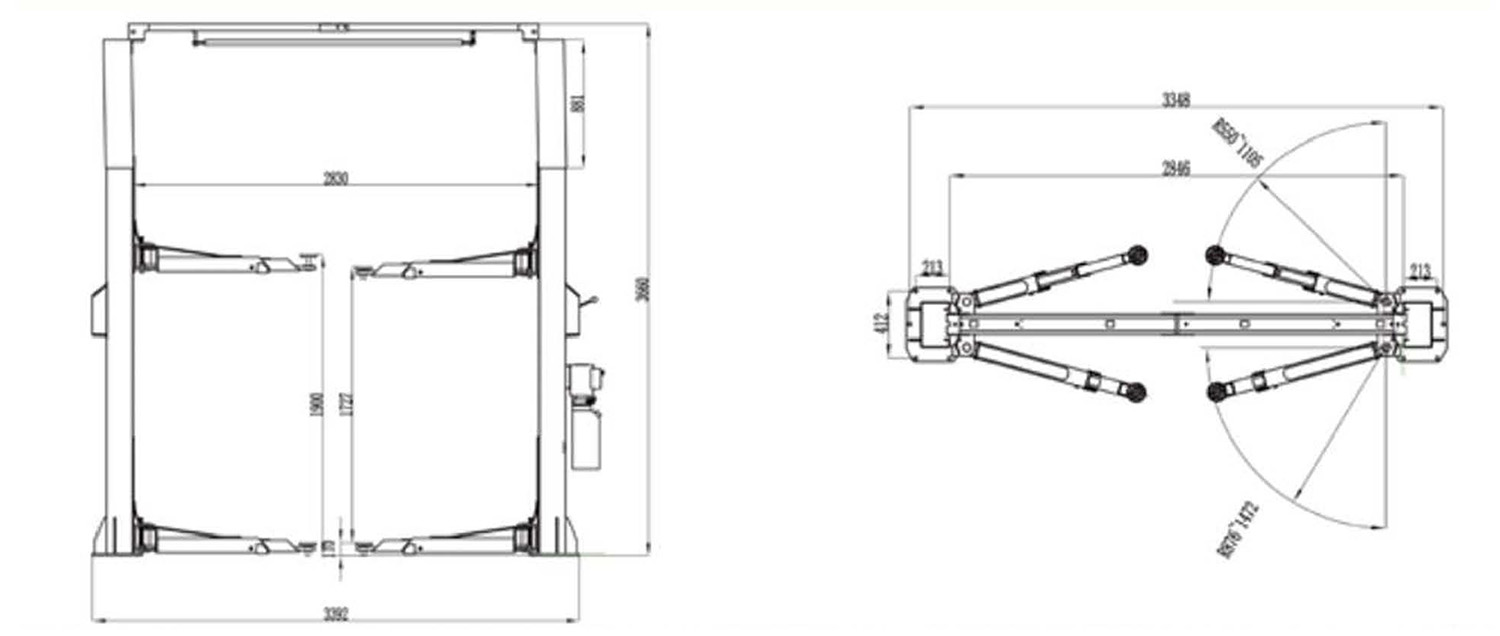

Basic Parameter
Lifting height130-1900mm
Overall height3660mm
Installation height3392mm
Pass width2520mm
Column spacing2830mm
Lifting time50s
Weight605kg
Packing size2880*480*2200mm
Motor power2.2kW
Straight arm size742-1166mm
Lifting capacity4/4.5Ton

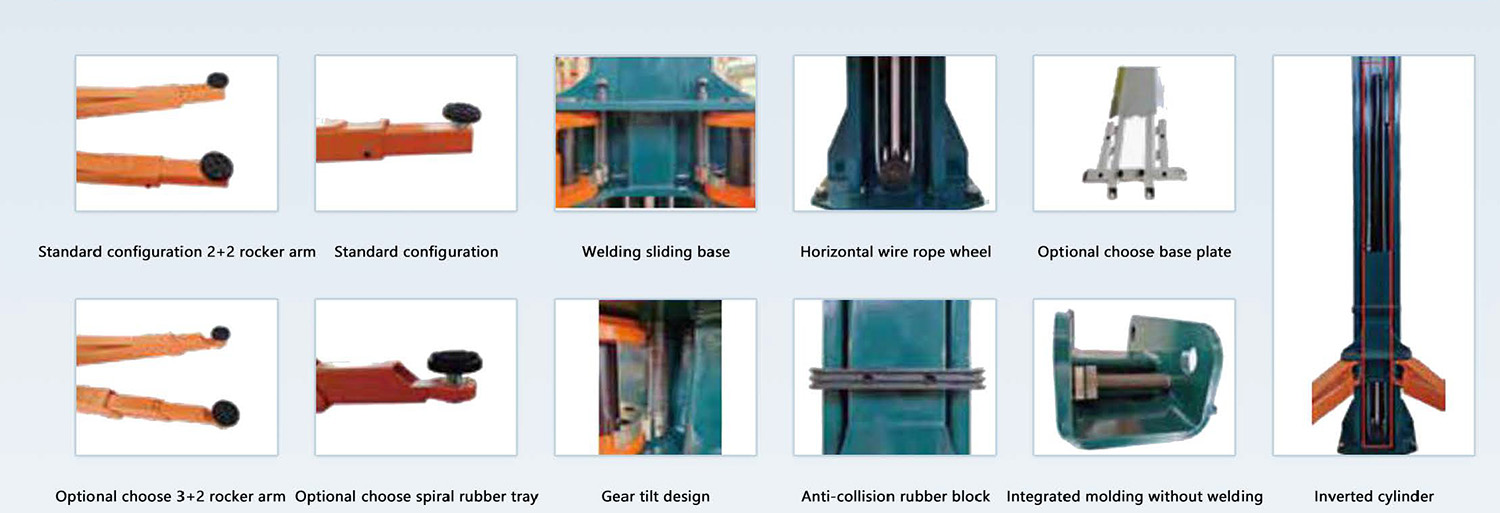

Brief introduction

Suport 35° installation, more convenient operation

No chain, cylinder direct drive form, more secure

More convenient maintenance, better sealing, not easy to leakt

Automatic welding production line, faster welding speed, higher precision

The machine structure is more beautifult
