Scissor Car Lift

PARKING FOUR-POST CAR LIFT F20

Description

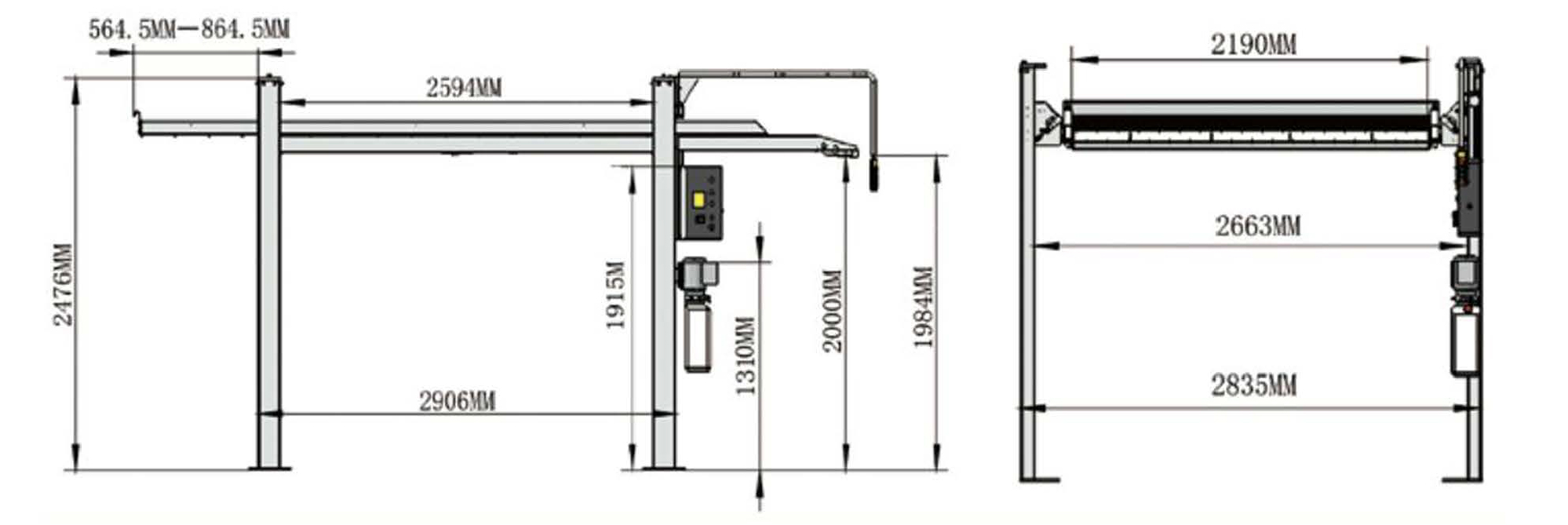

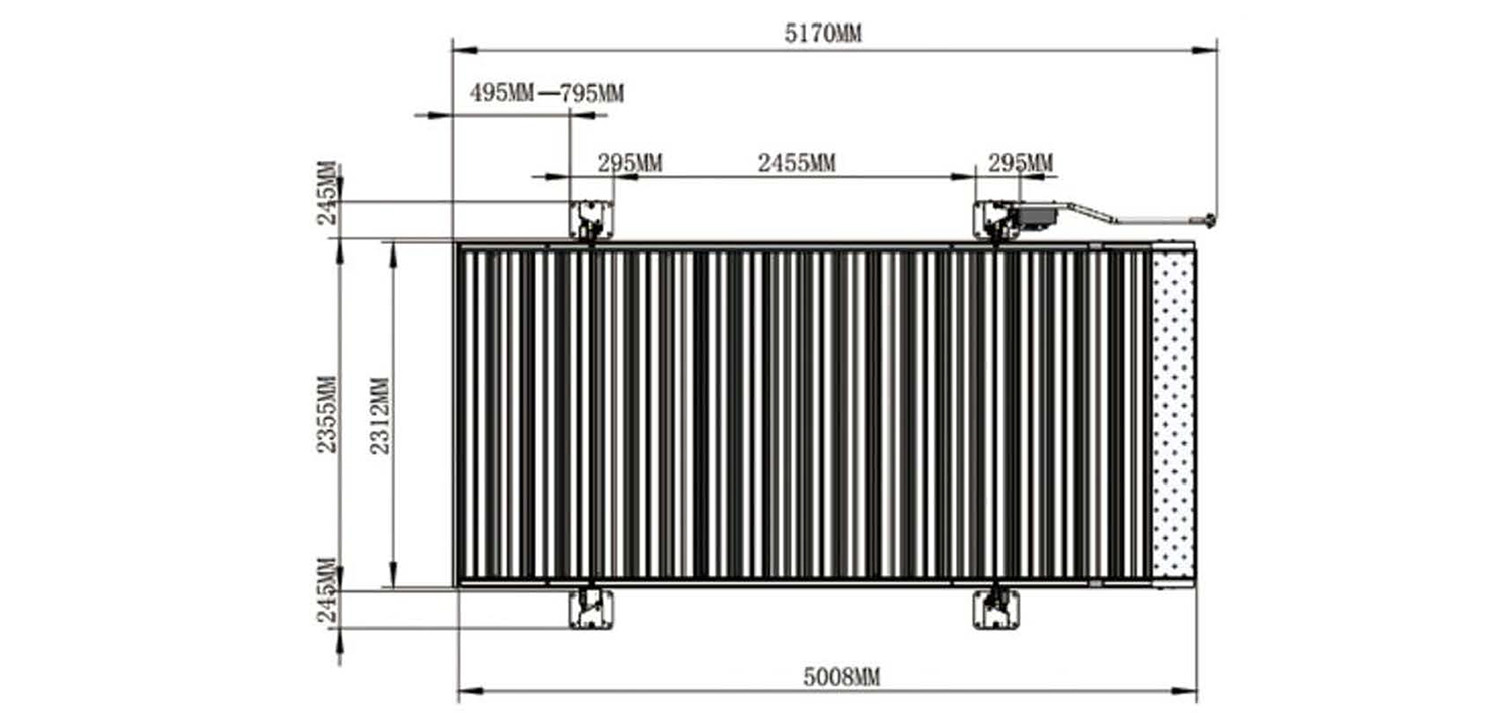

Basic Parameter
Gross weight1005kg
Size (L×W×H)5170×2845×2476mm
Packing size5000×570×1110mm
Overall length5170mm
Overall width2845mm
Platform length5008mm
Column spacing3995mm
Lifting time50s
Lifting capacity (8000lbs) 3600kg
Runway width2312mm
Max lifting height2000mm
Inside soleplate of columns width2190mm

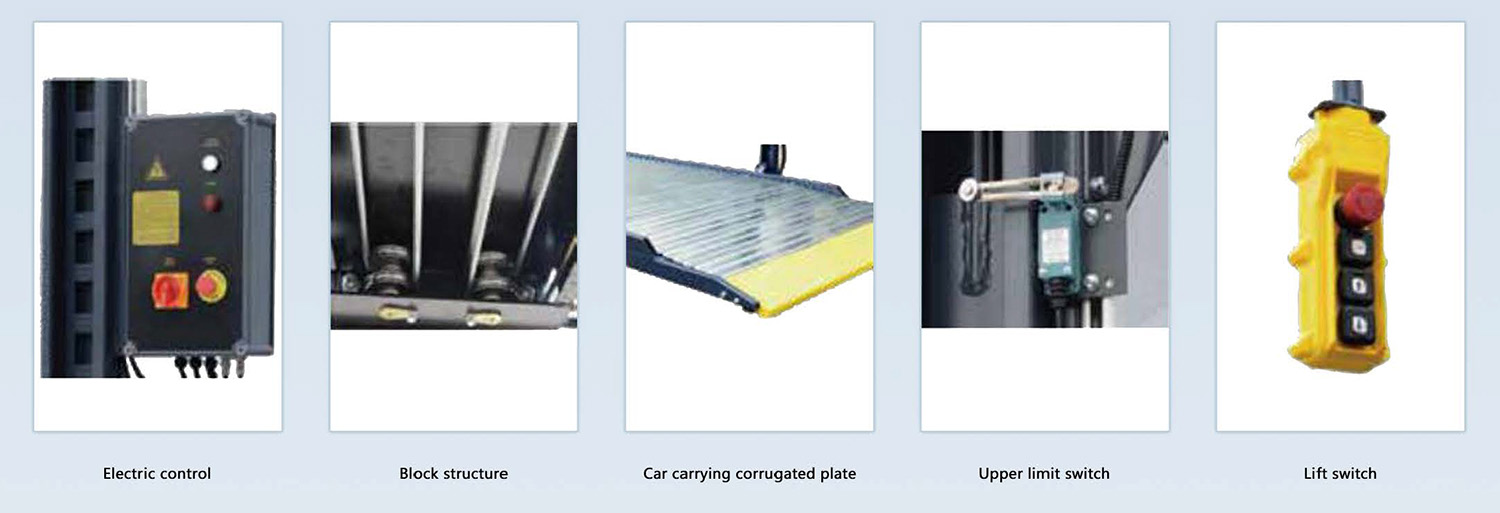

Brief introduction

Beautiful appearance, save space.

Motor drive oil pump drive hydraulic cylinder, wire rope drive, quiet working environment.

Mechanical safety lock, can be arbitrarily locked in the design range of the height of the operation, safe and reliable.

The levelness of the four angles in thelocked position can be adjusted.

A set of throttle valves is installed in theoil circuit.
