Scissor Car Lift

FOUR-POST CAR LIFT F10

Description

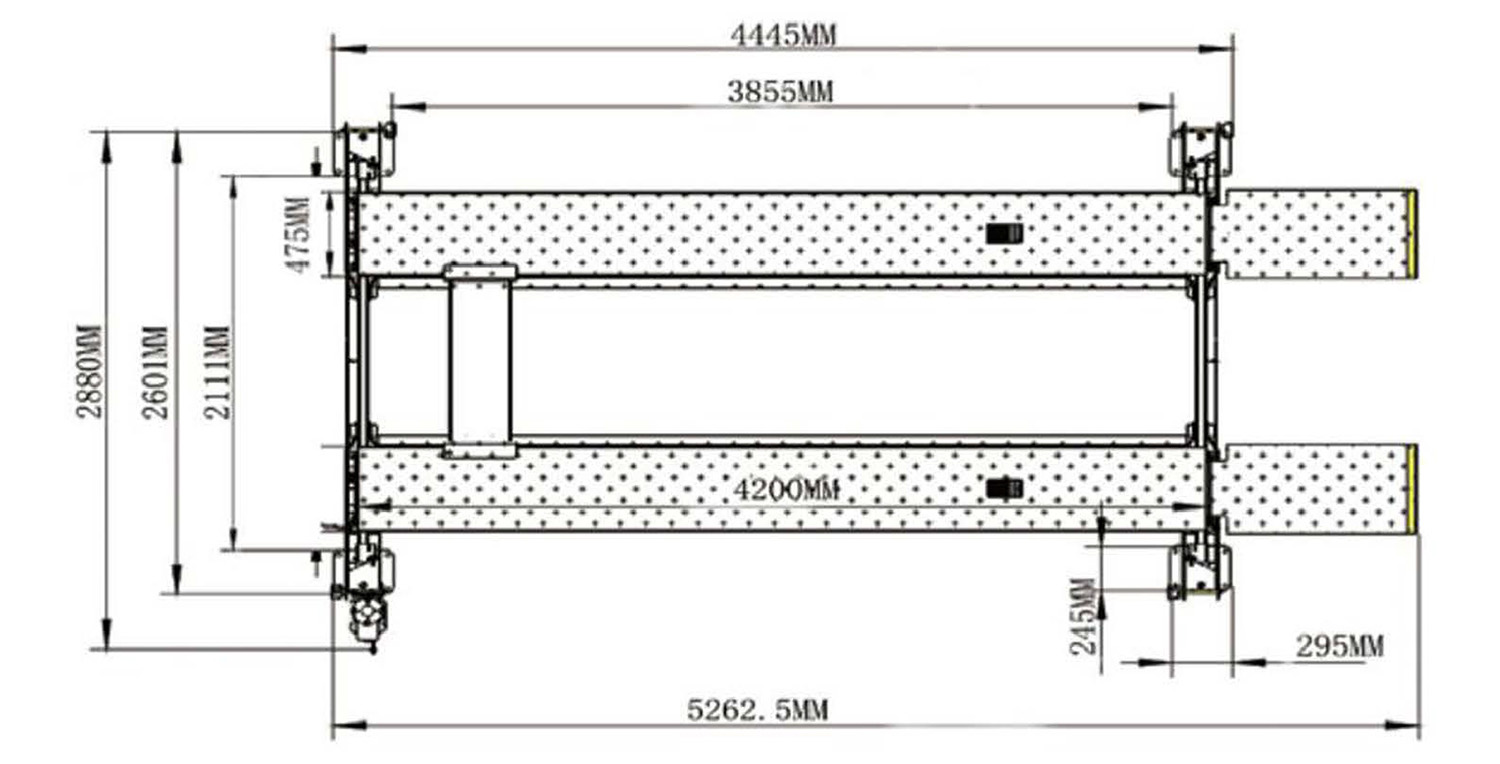

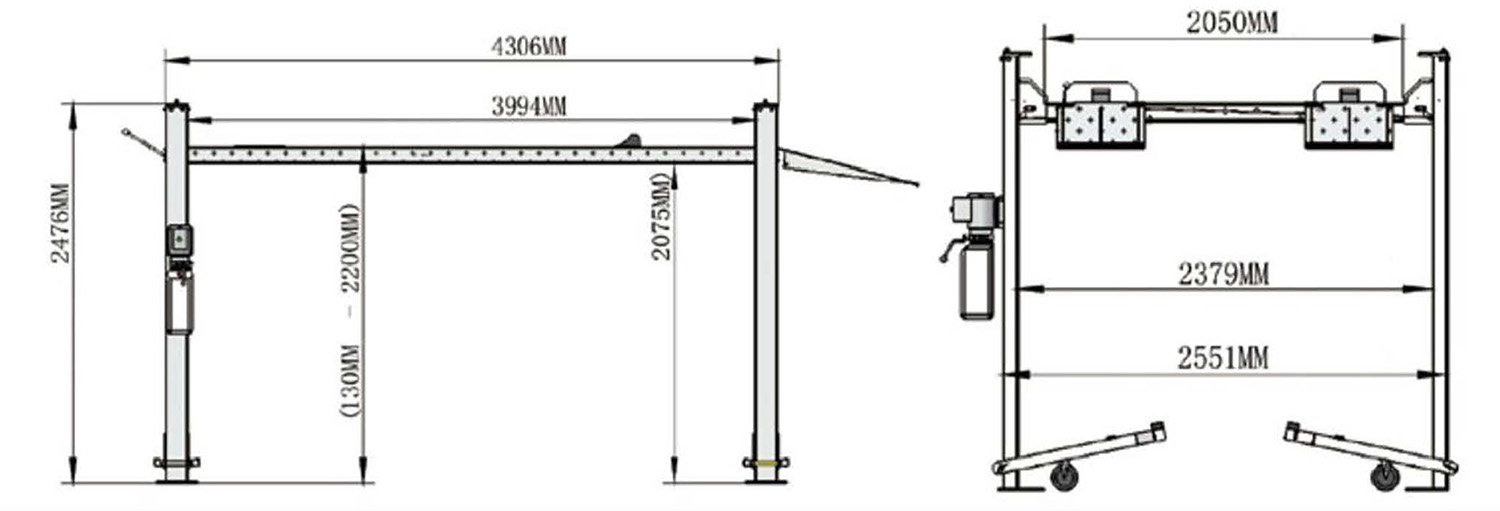

Basic Parameter
Gross weight840kg
Size (L×W×H)5262.5×2880×2476mm
Packing size4300×570×725mm
Overall length5262.5mm
Overall width2880mm
Platform length4200mm
Column spacing3994mm
Lifting time50s
Lifting capacity (8000lbs) 3600kg
Runway width475mm
Runway spacing955mm
Max lifting height2075mm
Inside soleplate of columns width2111mm
Brief introduction

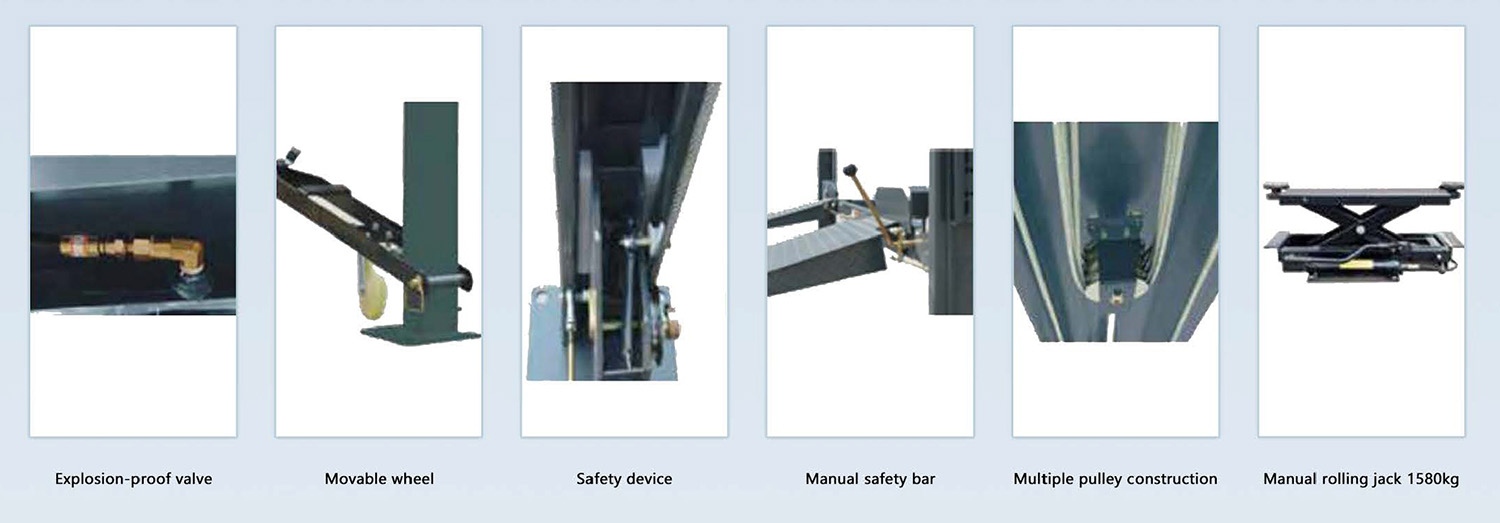

Vertical rise and fall parking lift, it is the ideal equipment for commercialvehicles and SUV medium and large vehicles parking, Lifting height 2075mm, lifting capacity 8000 lbs. Convenient installation, compact structure, the special mobile fitting make the whole device move convenient when no-load. Manual mechanical safety organ and wire rope fracture protective mechanism, double safety mechanism, more safety, It uses high density slide blocks in the columns, Long service life. Explosion-proof throttle valve on the oil tube, It can prevent falling fast because of oil tube burst. The platform is made of high strength antiskid pattern plate overall molding. The special brake block can prevent the vehicles moving. Optional rolling jack, convenient for maintenance vehicles.
