Automatic Ridge Cap Roll Forming Machine

Automatic Ridge Cap Roll Forming Machine
Automatic Ridge Cap Roll Forming Machine

Description

Brief introduction

Ridge Cap Roll Forming Machine is especially used for producing the ridge cap, which is used for the roofing system of house and It is a kind of very welcomed modern building material. It can continuously uncoiling, feeding, roll forming, and cutting to length. The whole line adopts PLC controlling system. It can run full automatically.

The machine can be customized based on the customer’s specific technical requirements.

Technical specification
No Item Parameter Remark
1 Suitable   Material Type Color coating steel
Thickness(mm) 0.4-0.5
Yield Strength(Mpa) 230-300
ID of the coil φ508mm
OD of the coil φ1200mm
2 Forming Speed(m/min) 20 According to actual
design
3 Roller Material No.45 steel with hard chromized
4 Cutting Model Hydraulic Motor
Cutting

5 Total Power 9.9KW According to actual
design
6 Control system  PLC control system
Description

Ridge Cap Roll Forming Machine can do the profile according to customer’s different requirements.

Work flow

Decoiling Roll forming Punching Cutting Running out

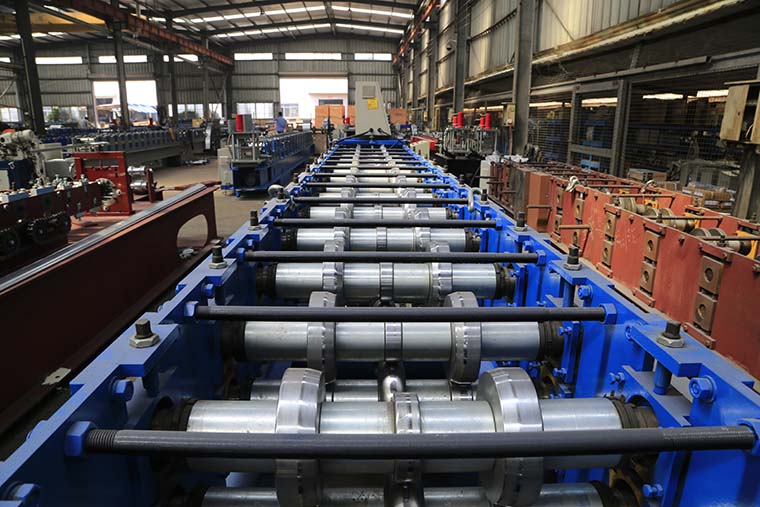

High Precision Roll Forming System

1) Machine frame: welding structure with blasting treatment

2)The roller is made by high quality no.45 steel with hard chrome-painted

3) Planetary gear speed reducer motor driven, back/forward roller driven by chain, part of upper/lower rollers driven by gear.


High Quality Punch and Cut System

1)  The cutting blade material is Cr12 with quenched treatment, there is no material wasted.

2)  It adopts hydraulic motor cutting
Application



Product application of Ridge Cap Roll Forming Machine

The Ridge cap profile is not fixed. Mostly of time, we are especially manufacturing the machines according to different customers’ technical requirements.

Packaging

1. One *40GP containers for loading one set of the machine.

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in wooden box;

4. All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
